How today’s camcorders support smarter live production workflows

The camera combines 4K HDR imaging with networking, cloud integration and content authentication capabilities aimed at productions that need footage delivered quickly and reliably across distributed teams.

Speed to air in the field

For news and live event crews, the bottleneck is rarely the shoot itself. It is the time between capture and delivery: pulling media, transferring files, logging into systems and waiting for uploads to complete.

The PXW-Z300 addresses this through several overlapping mechanisms.

The camera supports RTMP/RTMPS and SRT streaming protocols, allowing direct live contribution from the field over Wi-Fi, wired LAN or, via Sony’s PDT-FP1 Portable Data Transmitter attached to the camera’s Side V-Mount, a 5G connection. This removes the need for a separate encoding device or a dedicated transmission engineer on smaller productions.

For file-based delivery, the camera supports proxy recording in HEVC at multiple bitrates alongside full-resolution MXF recording. Proxy clips can be transferred in segments while a clip is still recording, and full MXF clips can be transferred as complete files once a clip is closed. In both cases, another clip can be recording simultaneously, meaning editors and producers can begin reviewing material without interrupting the shoot.

The camera also integrates with Sony’s Ci Media Cloud, which supports file sharing, collaborative review and MAM-adjacent workflows. Once destination settings are registered in the camera, transfers begin automatically as eachrecording stops, removing manual steps from the ingest process.

Hybrid production: live, remote and field capture

Modern productions rarely operate from a single location.

A news broadcast may combine a studio anchor, a field reporter streaming live and a second crew transferring file-based packages – all feeding the same output. Corporate and live event productions face similar coordination challenges, with cameras operating across venues, green rooms and remote locations simultaneously.

The PXW-Z300 supports multi-camera live production through integration with Sony’s M2L-X software-based production switcher, allowing cameras in different locations to be combined into a single stream without a physical production truck or switcher at the scene.

Sony’s Monitor & Control application, available on iOS® and Android®, allows camera operators or remote producers to check angles, adjust settings and start or stop recording from a smartphone or tablet over Wi-Fi. This supports scenarios where a single operator manages multiple cameras, or where a producer at a desk needs visibility into what a field camera is capturing before transmission.

Content authenticity for news workflows

The PXW-Z300 is the first camcorder to support the Coalition for Content Provenance and Authenticity (C2PA) standard for embedding digital signatures directly into video files at the point of capture.

The feature, which requires a separate upgrade license and is available in select regions, uses the C2PA framework to create a verifiable record of where and when footage was captured and whether it has been altered.

For broadcast news operations, this addresses a growing concern around the authenticity of video content, particularly footage shot in the field or sourced externally.

A digitally signed file carries metadata that can be verified downstream through C2PA-compatible tools, providing a chain of custody from camera to air.

The feature supports both perpetual and monthly license options, the latter suited to productions that require authentication for a specific project or run of events rather than an ongoing basis.

Imaging and operational design for live conditions

The camera uses three 1/2-inch back-illuminated 4K Exmor R® CMOS sensors with Sony’s BIONZ XR® image processing engine, supporting 4K 60p recording with F12 sensitivity in high sensitivity mode. A 17x optical zoom lens with a constant maximum aperture of F1.9 across the zoom range allows consistent exposure when moving between focal lengths, a practical consideration for sports and event cameras that frequently reframe without adjusting exposure manually.

A dedicated AI processing unit handles subject recognition based on facial structure, posture and skeletal information. The system maintains autofocus on subjects facing away from the camera or wearing facial coverings, and includes an auto-framing function that keeps human subjects centered as they move within the frame.

For live events and news gathering, where subjects are unpredictable and reshoots are not possible, this reduces the operational burden on the camera operator.

The Electronic Variable ND filter adjusts seamlessly from 1/4 to 1/128 ND, allowing exposure to be managed when moving between lighting conditions, from a bright exterior to a dim interior, without stopping to change physical filters.

The newly designed Flexible LCD Arm supports three-axis movement, allowing the monitor to be repositioned for shoulder-style shooting, waist-level capture or self-recording. The 3.5-inch monitor uses a Mini LED backlight and provides approximately 2.76 million pixels of resolution, with brightness sufficient for use in direct sunlight.

Recording formats and media

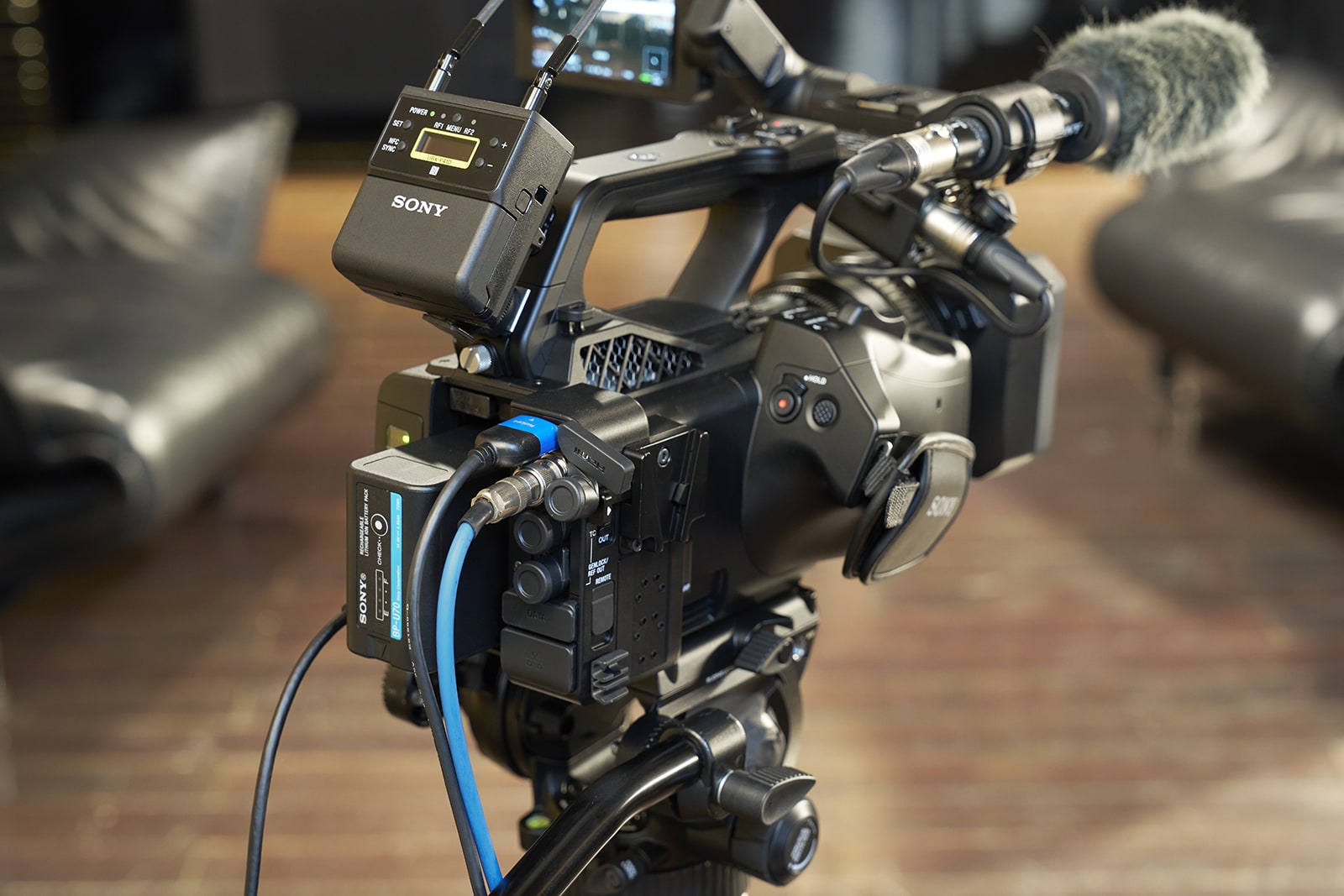

The PXW-Z300 supports XAVC Intra, XAVC Long and MPEG HD422 50 recording in MXF format, alongside MP4 proxy recording. Dual card slots accept CFexpress Type A and SDXC UHS-II/UHS-I media, supporting simultaneous recording to both cards for backup, relay recording for uninterrupted shooting, or one card for archive and one for immediate distribution.

Picture Cache recording continuously buffers images before recording is initiated, reducing the risk of missing a moment in fast-moving news or live event scenarios. The camera supports HLG Live, HLG Mild and HLG Natural presets for HDR production, alongside S-Cinetone, ITU709 and 709tone for SDR workflows. User-defined 3D LUTs can be imported via memory card.

The camera accepts BP-U series batteries and can also be powered via USB Power Delivery at 100 watts, with a locking connector to prevent accidental disconnection during extended shoots.
